Product overview

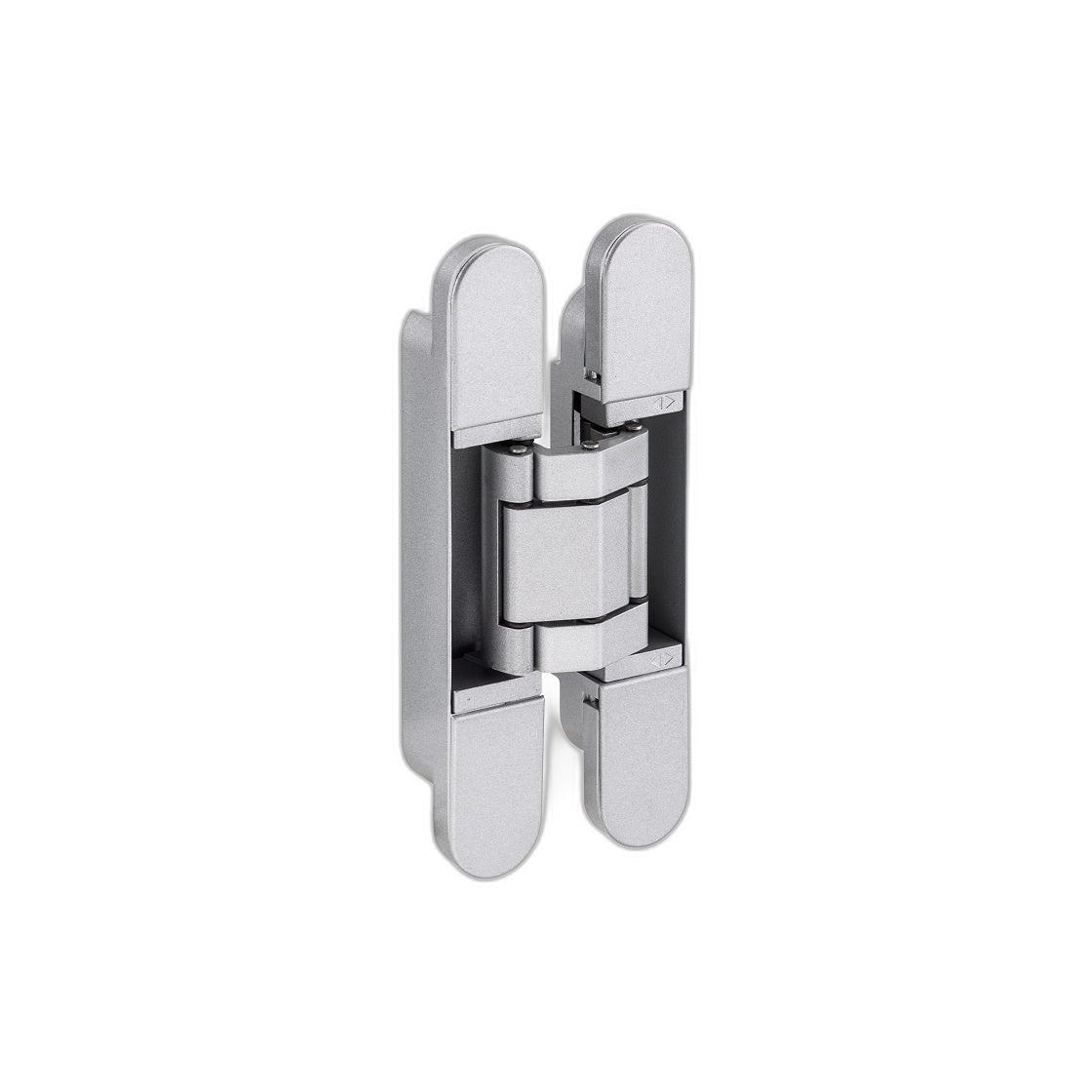

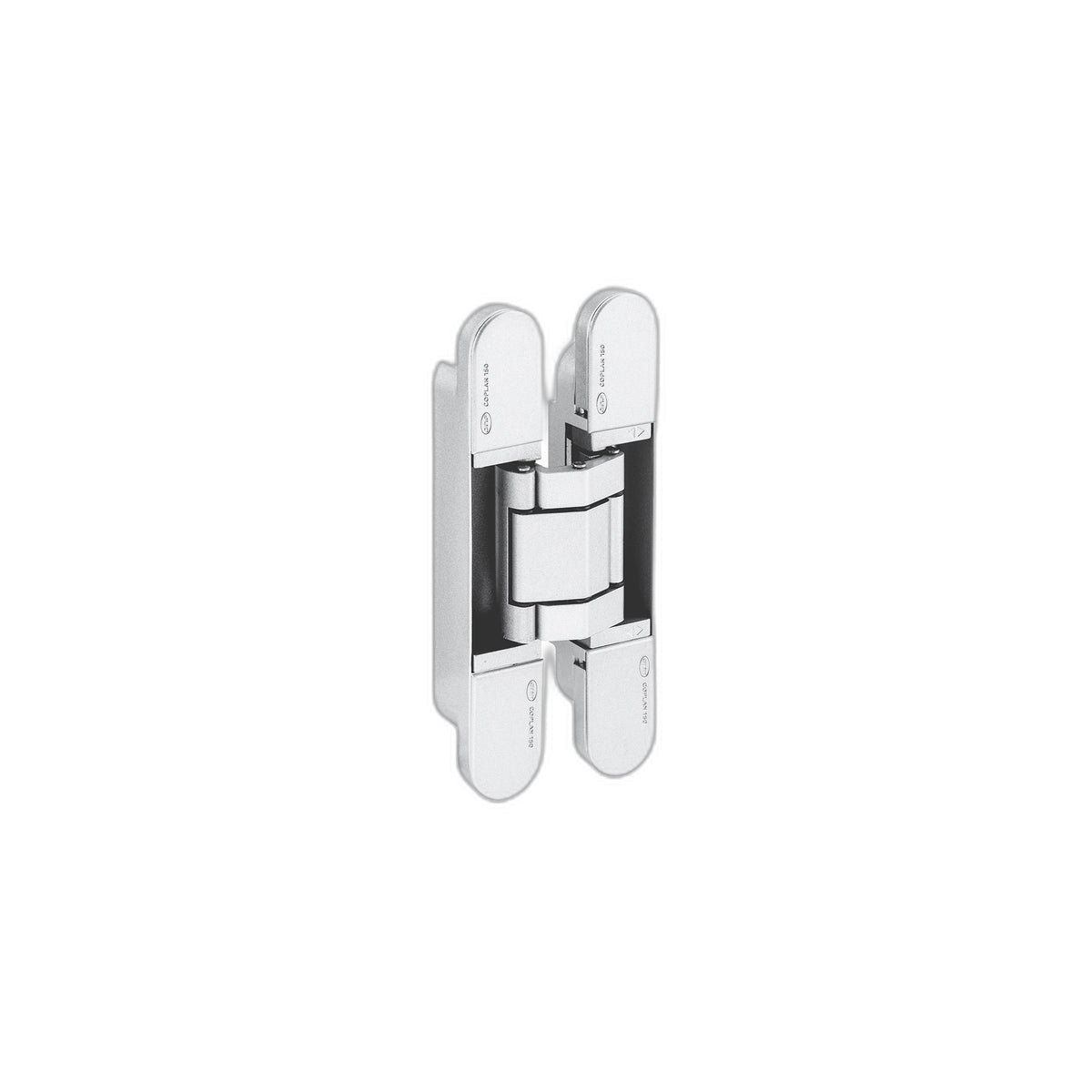

Create a clean, frameless appearance on heavy doors with this 3D adjustable concealed hinge. Its hidden installation and three-way adjustment help align the door vertically, horizontally and in depth for a precise finished result.
Key features
- Concealed hinge for invisible door installations
- Three-dimensional adjustment for depth, vertical and horizontal alignment
- 150 degree opening angle
- Reversible for left-hand or right-hand doors
- Suitable for interior and exterior doors
- Self-lubricating anti-friction washers
- 25 x 152 mm hinge dimensions
- Minimum door thickness of 36 mm
- Two hinges support doors up to 50 kg
- Three hinges support doors up to 60 kg
- 7 year mechanical warranty
Common uses
- Frameless and flush door installations
- Heavy residential doors
- Commercial and architectural doors
- Interior and exterior hinged doors
Content and Downloads
Item Code
5970.SS
Need assistance? Contact our team anytime. Note: Images are for illustrative purposes only. Please check the item code for accurate details.
