Product overview

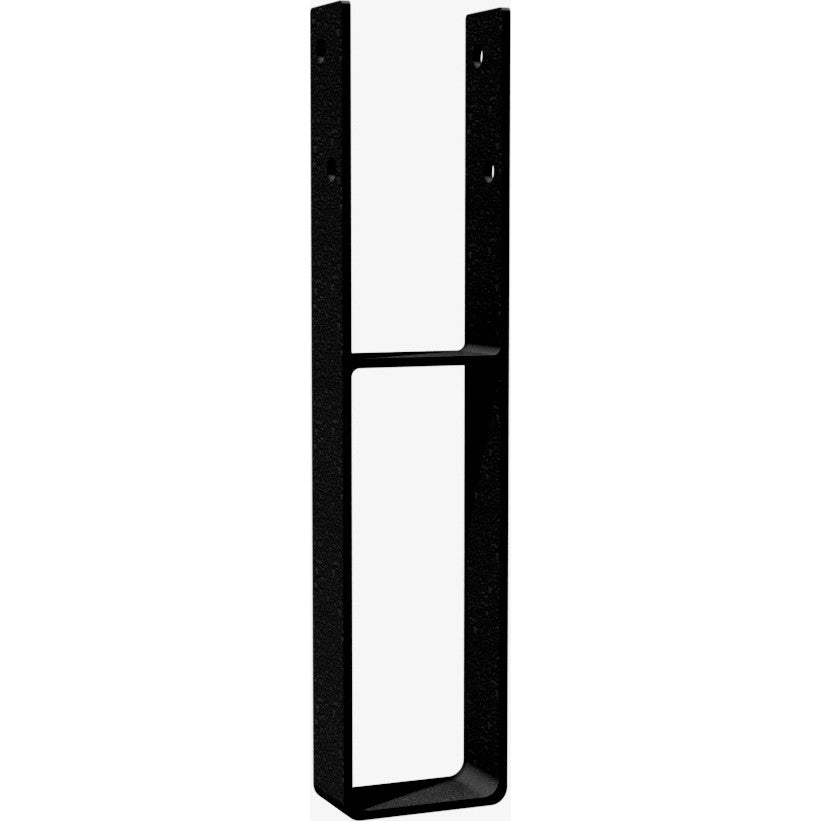

The Dunnings Type A Tornado anchor supports a 100mm timber post with a 450mm cast-in leg and heavy-duty cross-braced design.
This 6mm-thick post shoe is cast into a concrete footing and secured to the timber post with two M12 bolts. Dunnings specifies hot-dip galvanised corrosion protection for this exact size.
Key features
- Suitable for a 100mm timber post
- 450mm overall length
- 6mm-thick steel construction
- Cross-bracing bar for the Tornado configuration
- Hot-dip galvanised corrosion protection
- Post fixing requires two M12 bolts
Common uses
- Cast-in support for structural timber posts
- Deck and pergola post installations
- Post connections requiring resistance to uplift and downward loads
Item Code
EBPA12A1005
