Product overview

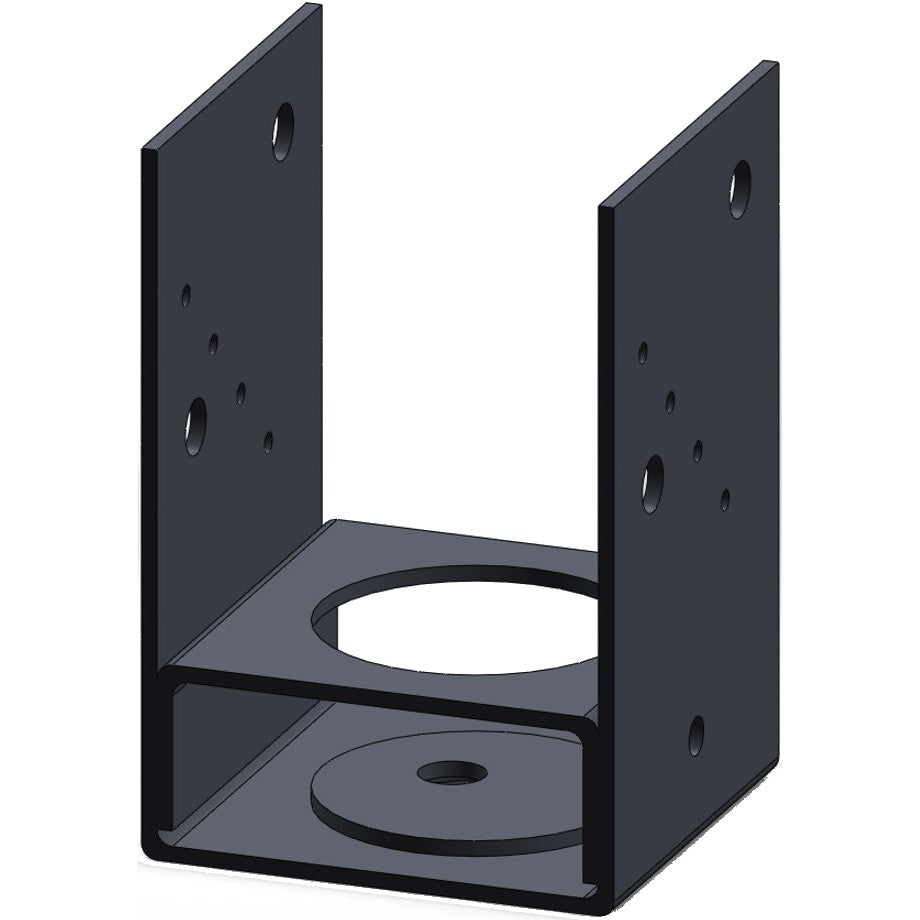

The Dunnings Type C two-piece anchor provides a bolt-down connection for a 90mm timber post on concrete.
This adjustable two-piece post shoe is 137mm high and manufactured from 3mm-thick steel with hot-dip galvanised corrosion protection. One anchor is fixed through the base plate to concrete, and the post is secured with two M10 bolts.
Key features
- Suitable for a 90mm timber post
- 137mm anchor height
- 3mm-thick steel construction
- Two-piece design supplied with a washer
- Hot-dip galvanised corrosion protection
- Post fixing requires two M10 bolts
Common uses
- Bolt-down support for square timber posts
- Installation on suitable concrete footings
- Deck, pergola and general post construction
Item Code
EBPACS90
