Product overview

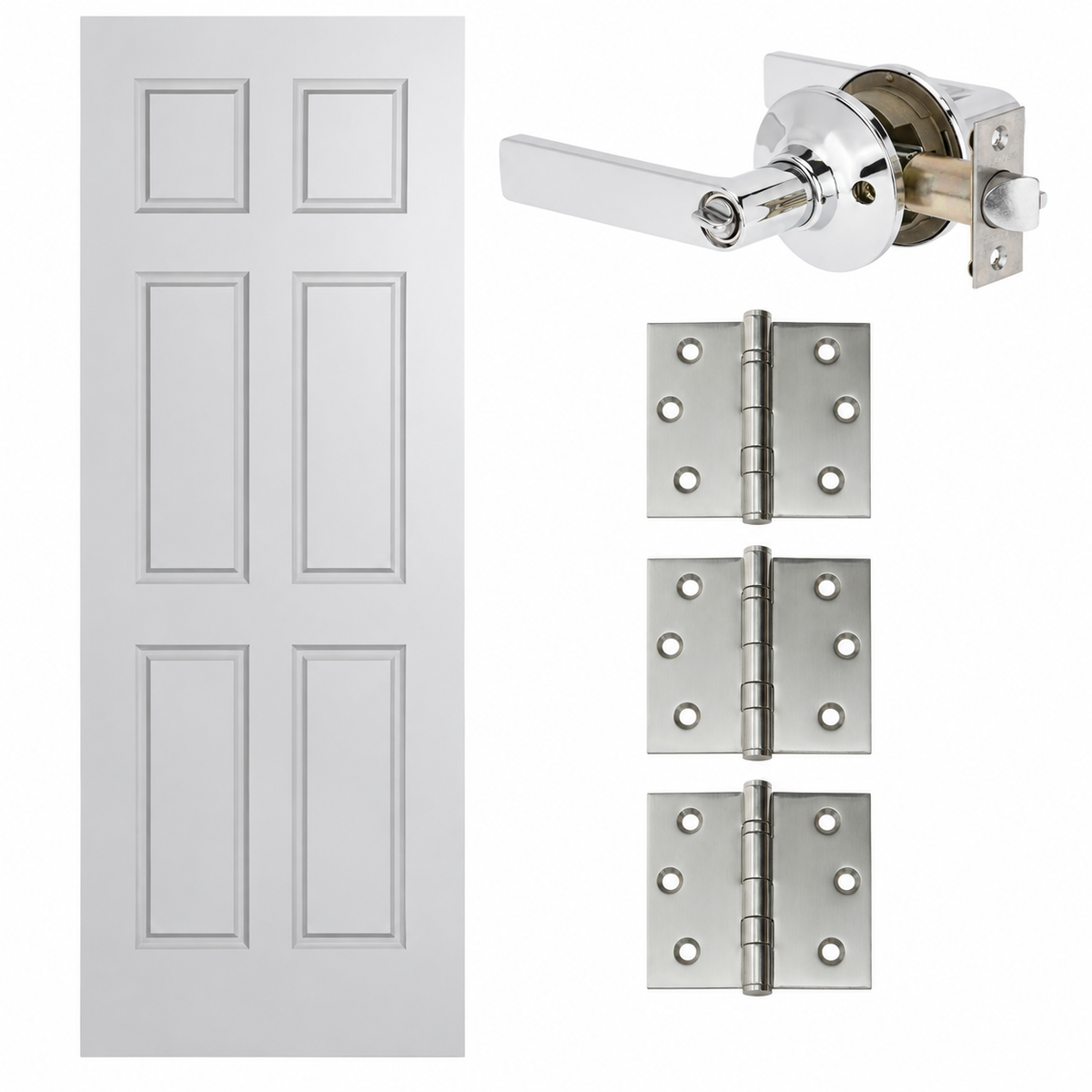

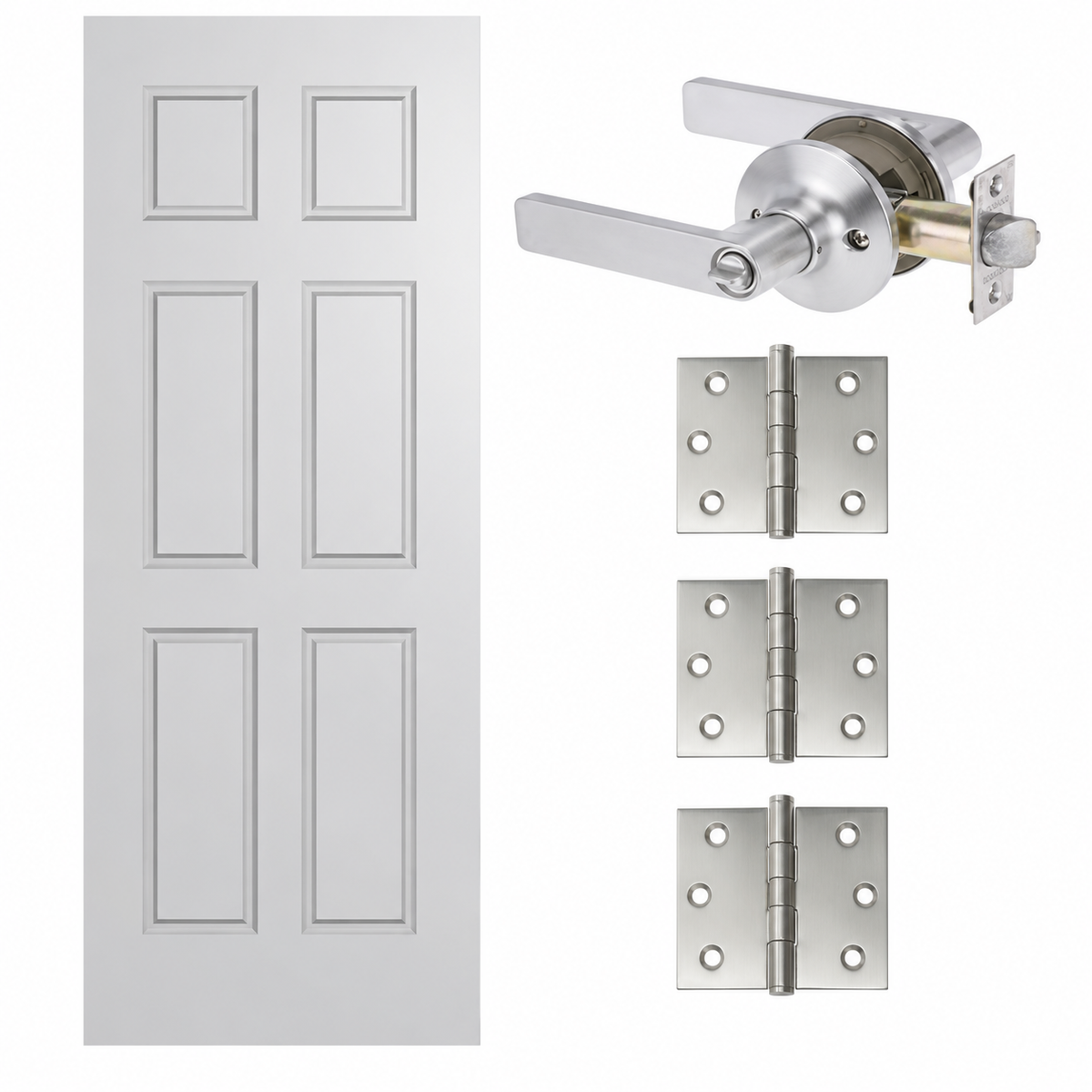

The Hume Vaucluse XV4 entry door package combines a routed solid-core door with chrome Lockwood hardware and stainless steel hinges.
Complete Entry Door Package
Create a refined residential entrance with a coordinated package built around the Hume Vaucluse Premier XV4 entrance door. Its deep square-routed exterior design adds architectural detail, while the solid-core construction provides strength and stability.
The package includes a Lockwood Symmetry Element 7550 keyed entrance lever set in chrome plate and three Lockwood 10000 Series ball-bearing fixed-pin hinges in satin stainless steel. Each component is compatible with the nominated 2040 x 820 x 40 mm door when correctly installed.
What's Included
- 1 x Hume Vaucluse Premier XV4 solid-core entrance door with Duracote faces
- 1 x Lockwood Symmetry Element 7550 keyed entrance lever set in chrome plate
- 3 x Lockwood 10000 Series ball-bearing fixed-pin hinges, 100 x 100 x 2.5 mm, in satin stainless steel
Why These Products Work Together
- The Lockwood Symmetry Element entrance set suits timber doors from 35 to 51 mm thick, making it compatible with the 40 mm Hume XV4 door
- The adjustable tubular latch accommodates common 60 mm and 70 mm residential backsets
- The non-handed lever set can be configured for left-opening or right-opening doors
- The keyed entrance function provides controlled exterior access with convenient internal locking
- Three 100 x 100 mm ball-bearing hinges provide smooth operation and dependable support for the solid-core entrance door
- The chrome-plated lever set and satin stainless steel hinges create a coordinated silver hardware combination
Key Features
- Contemporary deep square-routed design on the exterior face
- Smooth internal face for a clean interior appearance
- Solid-core construction for strength, stability and a substantial operating feel
- Duracote tempered hardboard faces ready for appropriate preparation and painting
- Key-operated exterior entrance lever with internal turn-button locking
- Lockwood C4 five-pin cylinder supplied keyed to differ
- Steel lockset chassis with an adjustable tubular latch
- Non-handed lockset suitable for left-hand and right-hand installation
- Ball-bearing hinges for smoother operation and reduced hinge wear
- Suitable for residential front entrances, renovations and new home construction
Installation and Care
The door, entrance set and hinges are supplied as separate components. The package is not supplied pre-hung, pre-drilled or pre-machined.
The XV4 door has primed front and back faces, while the routed sections and edges are supplied raw. All raw areas, cut-outs and machined openings must be correctly sealed or painted before installation.
The door must be finished and maintained in accordance with Hume's instructions. Seal all six surfaces, including the top, bottom, vertical edges and every opening created for the lockset and hinges. External installations require suitable overhead protection, an appropriate weather-resistant frame and effective perimeter and sill sealing.
- Hume: How to Install a Door
- Hume: Door Care and Maintenance
- Lockwood: Symmetry Leverset Installation Instructions
Important: Professional installation is recommended. Confirm the door handing, opening direction, lock location, backset, frame dimensions, hinge positions, clearances and weather exposure before machining or finishing. The door frame, jamb, sill, weather seals, finishing products and installation fasteners are not included.
Warranty
The Hume door and Lockwood hardware are covered by their respective manufacturer warranties, subject to correct installation, finishing, maintenance and the manufacturers' warranty conditions. Hume doors are supported by the applicable five-year manufacturer guarantee, while the Lockwood Symmetry hardware finish is covered by its applicable finish guarantee.
Item Codes
- Lockwood Symmetry Element entrance set: 7550CP/7550SC/7550MB
- Lockwood 10000 Series ball-bearing fixed-pin hinge: LW10000BBSSS
