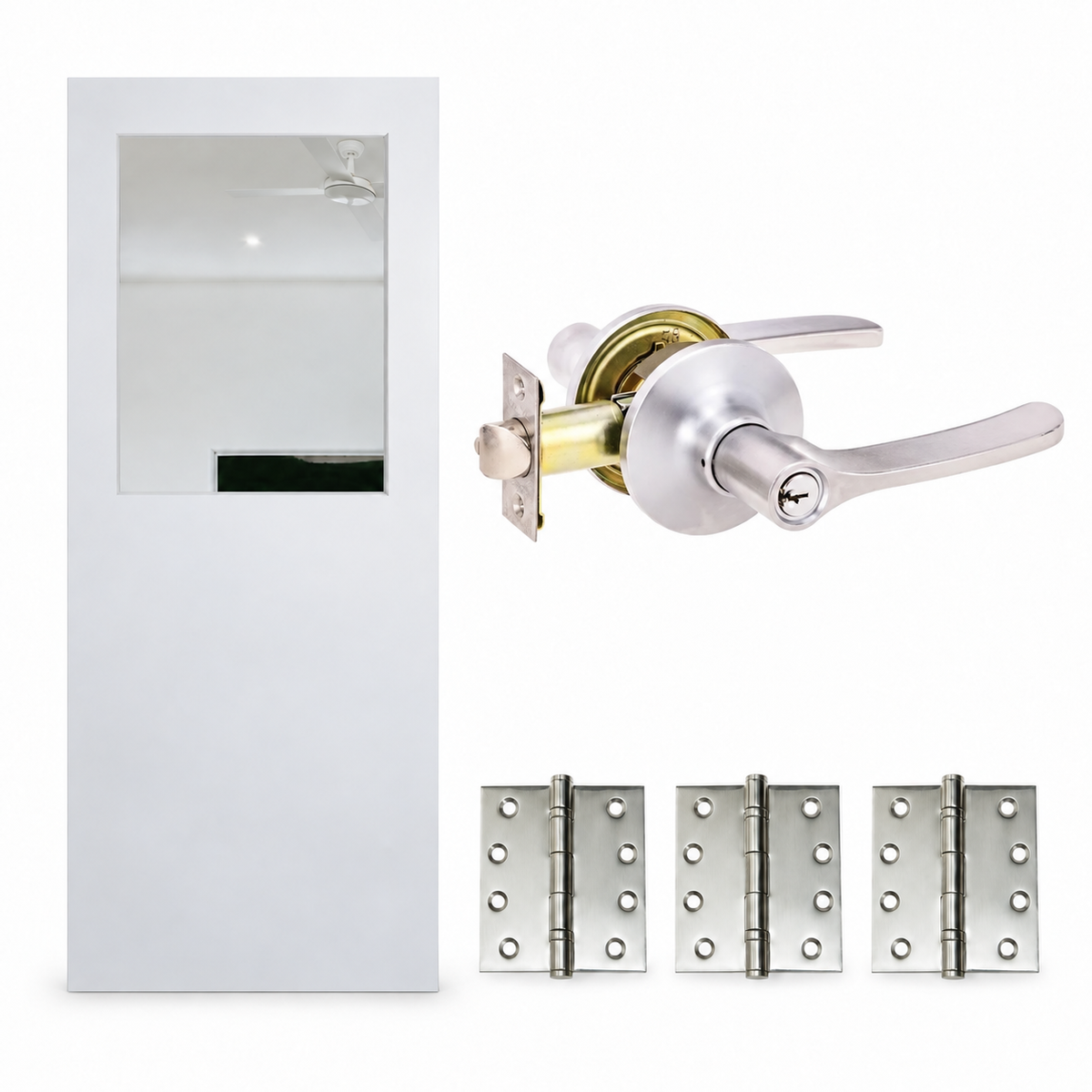

Hume XF3 Entry Door Package

The Hume XF3 entry door package combines a clear-glazed entrance door with compatible Lockwood Symmetry hardware and ball-bearing hinges.

Complete Entry Door Package

Create a light-filled residential entrance with a coordinated package built around the Hume XF3 entrance door. Its large clear half-glass panel allows natural light and visibility while the smooth Duracote facing provides a clean surface ready for finishing.

The package includes a Lockwood Symmetry Vicinity 7530 keyed entrance set and three Lockwood 10000 Series ball-bearing fixed-pin hinges. The components have been selected for compatibility with the 35 mm thick, 2040 x 820 mm door and suitability for residential entrance applications.

What's Included

• 1 x Hume XF3 hollow-core Duracote entrance door with clear half glazing,
• 1 x Lockwood Symmetry Vicinity 7530 keyed entrance set with included tubular latch and Satin Chrome finish
• 3 x Lockwood 10000 Series 100 x 100 x 2.5 mm ball-bearing fixed-pin hinges in Satin Stainless Steel

Why These Products Work Together

• The Lockwood Symmetry Vicinity entrance set is suitable for installation on the 35 mm thick Hume XF3 door
• The entrance function provides keyed exterior access and convenient lever operation for a residential entry door
• The included tubular latch removes the need to purchase a separate operating latch
• The non-handed lever configuration can be adapted for left-opening or right-opening doors during installation
• Three 100 x 100 mm ball-bearing hinges provide smooth movement and dependable support for the 2040 x 820 mm glazed door
• Fixed hinge pins provide additional hinge-side security, particularly when the entrance door opens outwards
• The Satin Chrome lever set and stainless steel hinges provide a coordinated silver-toned hardware combination

Key Features

• Contemporary XF3 entrance-door design with a large clear half-glass panel
• Hollow-core construction with a smooth Duracote facing
• Key-operated exterior lever for controlled entrance access
• Comfortable curved Vicinity lever design on round roses
• Tubular latch and strike components included with the entrance set
• Ball-bearing hinges designed for smooth, reliable operation
• Suitable for residential entrances, renovations and replacement-door projects

Installation and Care

The door, lockset and hinges are supplied as separate components for professional machining, fitting and installation. The package is not supplied pre-hung, pre-drilled or pre-machined.

Lock and lever preparations must be positioned within the door's reinforced stile or lock block. Before machining, confirm the handing, opening direction, backset, frame clearances and final hardware position.

The door must be correctly sealed, finished and maintained in accordance with Hume's instructions. Seal all faces and edges, including the top, bottom and every machined opening, immediately after fitting. Exterior doors require a correctly weather-sealed frame and suitable overhead protection from direct weather exposure.

• Hume: How to Install a Door
• Hume: Door Care and Maintenance
• Lockwood: Symmetry Entrance Set Installation Instructions

Important: Professional installation is recommended. Confirm the door frame, handing, opening direction, clearances, exposure conditions and lock-block position before machining. Door frame, jamb, sill, weather seals, finishing products and installation fasteners are not included.

Warranty

The Hume door and Lockwood hardware are covered by their respective manufacturer warranties, subject to correct installation, finishing, use and maintenance. Failure to seal every door surface or provide adequate exterior weather protection may affect the Hume warranty. Lockwood warranty coverage is subject to the applicable product terms and exclusions.

Item Codes

• Lockwood Symmetry Vicinity 7530 entrance set: 7530SCDP
• Lockwood 10000 Series ball-bearing fixed-pin hinge: LW10000BBSSS
