Product overview
Seal the underside of single-action doors automatically with a fully mortised drop seal that lifts clear as the door opens.

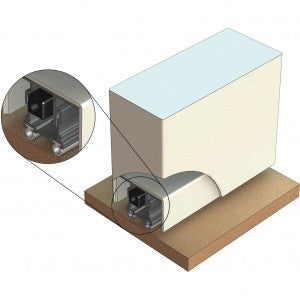

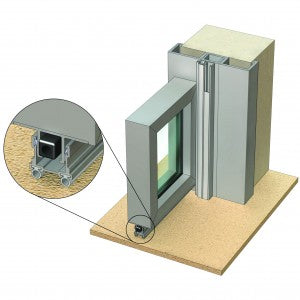

This 610mm automatic door bottom seal is designed for fully mortised installation in hollow metal doors or aluminium door rails. A spring-loaded mechanism raises the seal as the door opens, while pressure on the adjustable strike button lowers the grey silicone compression gasket when the door closes. Kilargo lists a maximum cut-back length of 380mm for this size.
Key features
- 610mm length with maximum cut-back to 380mm
- Fully mortised automatic flat-back design
- Clear anodised aluminium with grey silicone compression gasket
- Designed for single-action doors
- Conforms with NCC Specification C3.4 smoke sealing requirements
- Durability tested through more than 1,000,000 open and close cycles
Common uses
- Hollow metal single-action doors
- Aluminium door rails
- Smoke and acoustic sealing beneath doors
Item Code
IS8110SI-0610CA
