Kilargo Heavy Duty Automatic Door Bottom Seal - Face-Fixed / Semi-Rebated / Mortised - 3-15mm Gap

Automatically seal beneath single-action doors with a heavy-duty drop seal offering multiple installation options.

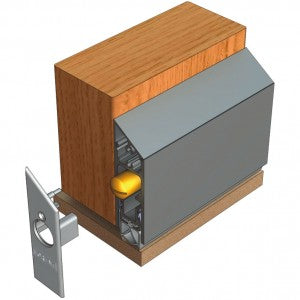

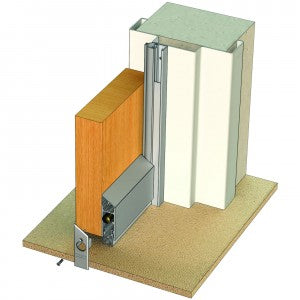

This 450mm automatic door bottom seal can be face-fixed, semi-rebated or fully mortised into the bottom edge of a single-action door. Its spring-loaded mechanism raises the seal when the door opens and lowers the grey silicone gasket when the adjustable strike button contacts the jamb.

Key features

• 450mm length, cuttable to a minimum of 275mm
• Silver anodised aluminium with grey silicone gasket
• Face-fixed, semi-rebated or fully mortised installation
• Suitable for gaps from 3mm to 15mm
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Durability tested through more than 1,000,000 open and close cycles

Common uses

• Automatic sealing beneath single-action doors
• Smoke-control door assemblies
• Acoustic door sealing applications

Item Code

IS8020SI-0450CA

Content and Downloads

• IS8020SI Kilargo Fact Sheet
• IS8020SI Fitting Instructions
