Kilargo Heavy Duty Automatic Door Bottom Seal - Fully Mortised - 3-15mm Gap - Clear Anodised

Automatically seal beneath single-action doors with a heavy-duty drop seal fully mortised into the door bottom.

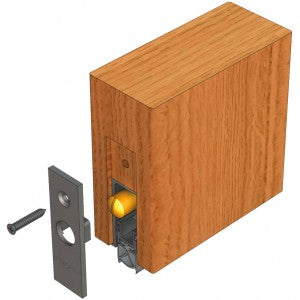

This 450mm automatic door bottom seal is installed in a 43mm deep x 21mm wide groove along the underside of a single-action door. Its spring-loaded mechanism lifts the grey silicone gasket clear as the door opens and lowers it when the adjustable brass strike button contacts the jamb.

Key features

• 450mm length, cuttable to a minimum of 275mm
• Fully mortised installation
• Silver anodised aluminium with grey silicone gasket
• Suitable for gaps from 3mm to 15mm
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Durability tested through more than 1,000,000 open and close cycles

Common uses

• Automatic sealing beneath single-action doors
• Mortised smoke-control door installations
• Acoustic door sealing applications

Item Code

IS8100SI-0450CA

Content and Downloads

• IS8100SI Kilargo Fact Sheet
• IS8100SI Fitting Instructions
