Kilargo Heavy Duty High Performance Acoustic Automatic Door Bottom Seal - Face-Fixed / Semi-Rebated / Fully Mortised - 6-15mm Gap - Clear Anodised

Automatically seal door-bottom gaps with a heavy-duty drop seal designed for high-performance acoustic door systems.

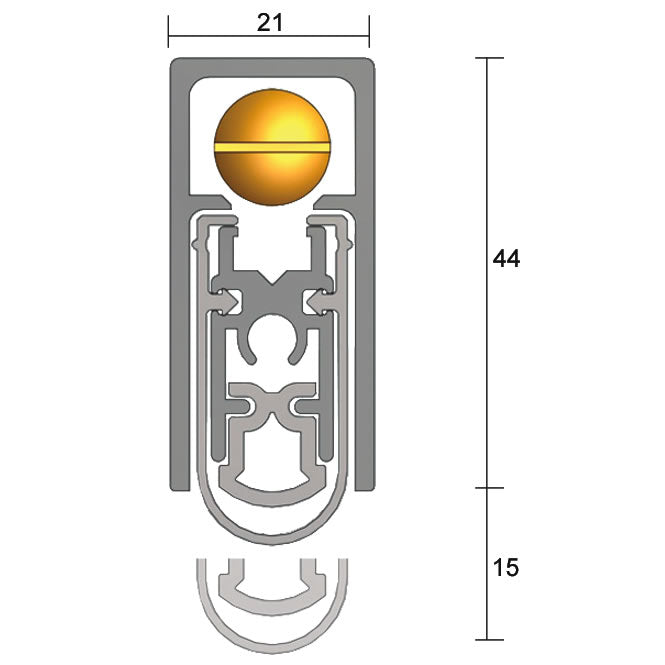

This 920mm automatic door bottom seal can be face-fixed, semi-rebated or fully mortised into the bottom edge of single-action doors. Its spring-loaded mechanism lifts the seal clear as the door opens and lowers the grey silicone gasket when the adjustable brass strike button contacts the jamb.

Key features

• 920mm length, cuttable to a minimum of 820mm
• Silver anodised aluminium with grey silicone gasket
• Face-fixed, semi-rebated or fully mortised installation
• Suitable for gaps from 6mm to 15mm
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Durability tested through more than 1,000,000 open and close cycles

Common uses

• High-performance acoustic door systems
• Smoke-control door assemblies
• Automatic sealing beneath single-action doors

Item Code

IS8520SI-0920CA

Content and Downloads

• IS8520SI Kilargo Fact Sheet
• IS8520SI Fitting Instructions
