Kilargo Intumescent Fire & Smoke Door Bottom Upgrade Seal - Up To 60mm Gap - Clear Anodised

Upgrade large fire-door bottom gaps with a retrofit intumescent seal for nominal 45mm proprietary fire doors.

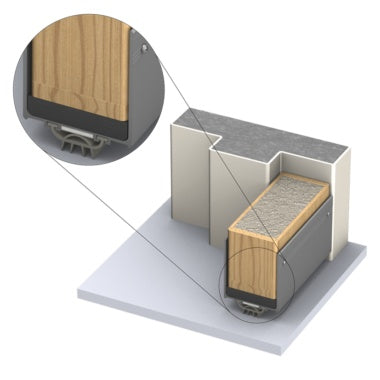

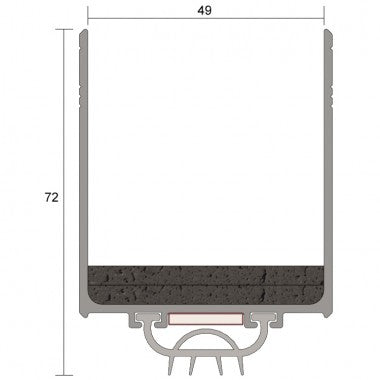

This 1220mm retrofit fire and smoke seal is designed for existing nominal 45mm proprietary fire doors where the bottom gap exceeds the allowable 10mm. It combines clear anodised aluminium, a grey flame-retardant silicone gasket and integral high-performance intumescent fire seals to seal gaps up to 60mm.

Key features

• 1220mm length
• Designed for nominal 45mm proprietary fire doors
• Seals door-bottom gaps up to 60mm
• Clear anodised aluminium with grey silicone gasket and integral intumescent fire seals
• Pre-drilled slotted fixing holes and screws supplied
• Tested to AS1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1

Common uses

• Upgrading nominal 45mm proprietary fire doors with large bottom gaps
• Retrofitting fire and smoke sealing without removing the door
• Applications requiring compliance with NCC Specification C3.4 smoke sealing requirements

Item Code

FDBU60-45-1220CA

Content and Downloads

• FDBU60 Kilargo Fact Sheet
• FDBU60 Fitting Instructions
