Product overview

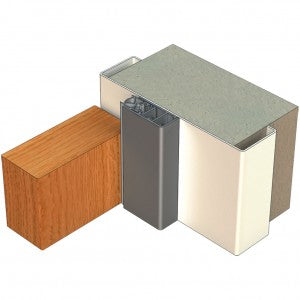

The Kilargo self-adjusting perimeter seal long single door set seals 0-8mm gaps for high-performance smoke and acoustic control.
This spring-loaded perimeter seal is designed for the head and jambs of door frames and automatically adjusts for movement or uneven doors. A black silicone gasket is available for this configuration, while polypropylene fins provide additional smoke and acoustic sealing.
Key features
- Long single door set includes 1 x 1000mm and 2 x 2750mm lengths
- Suitable for gaps from 0mm to 8mm
- Spring-loaded self-adjusting mechanism
- Mechanically adjustable to maintain the required seal
- Black silicone gasket configuration
- Polypropylene fins provide additional smoke and acoustic sealing
- Anodised aluminium tamper-resistant cover plate conceals fixings
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1 on proprietary fire door assemblies
- Acoustically tested to AS1191, ISO140.3 and ISO10140-2
- Durability tested through more than 100,000 open and close cycles
Common uses
- High-performance acoustic sealing around tall single doors
- Smoke sealing around door frame heads and jambs
- Non-fire-rated frames where the seal is installed in lieu of a door stop
- Approved proprietary fire door assemblies when installed as specified
Item Code
IS7090SI-LSDS-BK
