Product overview
Automatically seal beneath single-action doors with a medium-duty drop seal for smoke and acoustic control.

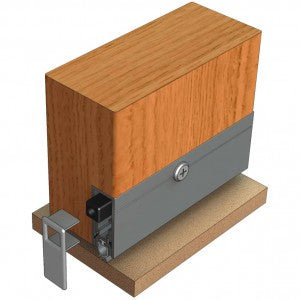

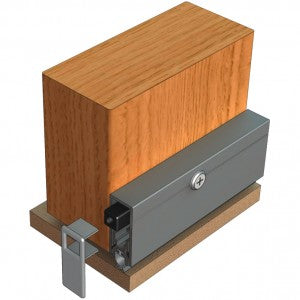

This 820mm automatic door bottom seal can be face-fixed or semi-rebated and operates by a spring-loaded mechanism that lifts clear of the floor as the door opens. It uses silver anodised aluminium with grey end plates and a grey silicone gasket.
Key features
- 820mm length, cuttable to a minimum of 600mm
- Silver anodised aluminium with grey silicone gasket

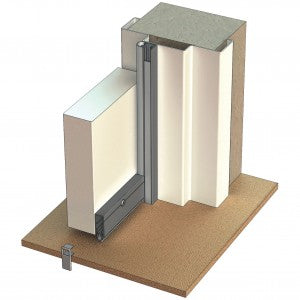

- Face-fixed or semi-rebated installation
- Suitable for gaps from 3mm to 15mm
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Durability tested through more than 1,000,000 open and close cycles
Common uses
- Automatic sealing beneath single-action doors
- Smoke and acoustic door sealing
- Proprietary fire door assemblies where the relevant door construction is approved
Item Code
IS8011SI-0820CA
