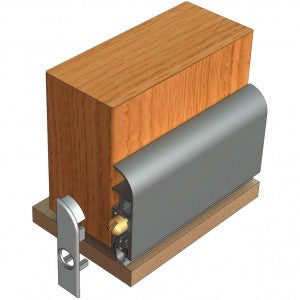

Kilargo Medium Duty Automatic Door Bottom Seal - Face-Fixed With Curved Cover - 3-10mm Gap - Clear Anodised

Automatically seal beneath single-action doors with a compact curved drop seal that conceals its fixing points.

This 380mm automatic door bottom seal is face-fixed and uses a spring-loaded mechanism that lifts clear of the floor as the door opens. Its silver anodised aluminium curved cover conceals the fixing points and houses a grey silicone gasket.

Key features

• 380mm length, cuttable to a minimum of 275mm
• Face-fixed installation
• Silver anodised aluminium curved cover with grey silicone gasket
• Suitable for gaps from 3mm to 10mm
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Durability tested through more than 1,000,000 open and close cycles

Common uses

• Automatic sealing beneath single-action doors
• Smoke and acoustic door sealing
• Applications requiring concealed fixings and an architectural curved cover

Item Code

IS8036SI-0380CA

Content and Downloads

• IS8036SI Kilargo Fact Sheet
• IS8036SI Fitting Instructions
