Product overview

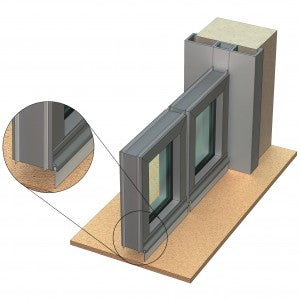

The Kilargo 13mm silicone sweep seal, 1000mm long, seals 9-12mm door gaps against smoke, draught, dust and weather.
This sweep-action seal combines a silver anodised aluminium carrier with a grey silicone fin. Its slim-line angled carrier helps avoid dust build-up and can be screw-fixed or self-adhered around door heads, jambs, bottoms and meeting stiles.
Key features
- 1000mm length
- 13mm grey silicone fin
- Suitable for gaps from 9mm to 12mm
- Silver anodised aluminium carrier
- Can be screw-fixed or self-adhered
- Fixing screws and aggressive backing tape supplied
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1 on proprietary fire door constructions
- Medium-temperature smoke leakage approvals to AS1530 Part 7 are available on proprietary door assemblies
- Conforms with NCC Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, ISO140.3 and ISO10140-2
- Manufactured in Australia
Common uses
- Door head and jamb sealing
- Door bottom and meeting stile sealing
- Single and double swing doors
- Revolving, tilt-up and roller doors
- Pivot-action smoke doors and clean room applications
Item Code
IS5111SI-1000CA
