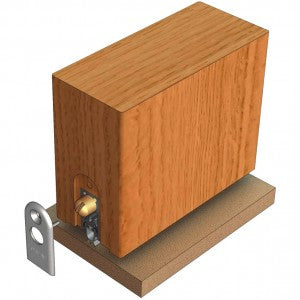

Kilargo Slim-Line Concealed Automatic Door Bottom Seal - Mortised - 3-10mm Gap - Clear Anodised

The Kilargo 820mm mortised automatic door bottom seal closes 3-10mm gaps for concealed smoke and acoustic sealing on single-action doors.

This slim-line automatic seal is mortised into a 24mm deep x 13mm wide groove in the bottom edge of the door. Its spring-loaded mechanism lifts clear of the floor as the door opens and lowers the grey silicone gasket when the adjustable strike button contacts the jamb.

Key features

• 820mm length, cuttable to a minimum of 600mm
• Suitable for gaps from 3mm to 10mm
• Silver anodised aluminium with grey silicone gasket
• Grey reinforced nylon radiused end plates
• Fully mortised installation in single-action doors
• High-efficiency mechanism assists with AS1428.1 door closing force requirements when correctly installed
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium-temperature smoke leakage approvals to AS1530 Part 7 are available on proprietary door assemblies
• Acoustically tested in accordance with AS1191, ISO140.3 and ISO10140-2
• Durability tested through more than 1,000,000 open and close cycles
• Manufactured in Australia

Common uses

• Concealed automatic sealing beneath single-action doors
• Smoke and acoustic door sealing
• Applications requiring a slim mortised door bottom seal
• Proprietary fire and smoke door assemblies where specifically approved

Item Code

IS8005SI-0820CA

Content and Downloads

• IS8005SI Kilargo Fact Sheet
• IS8005SI Fitting Instructions
