Product overview

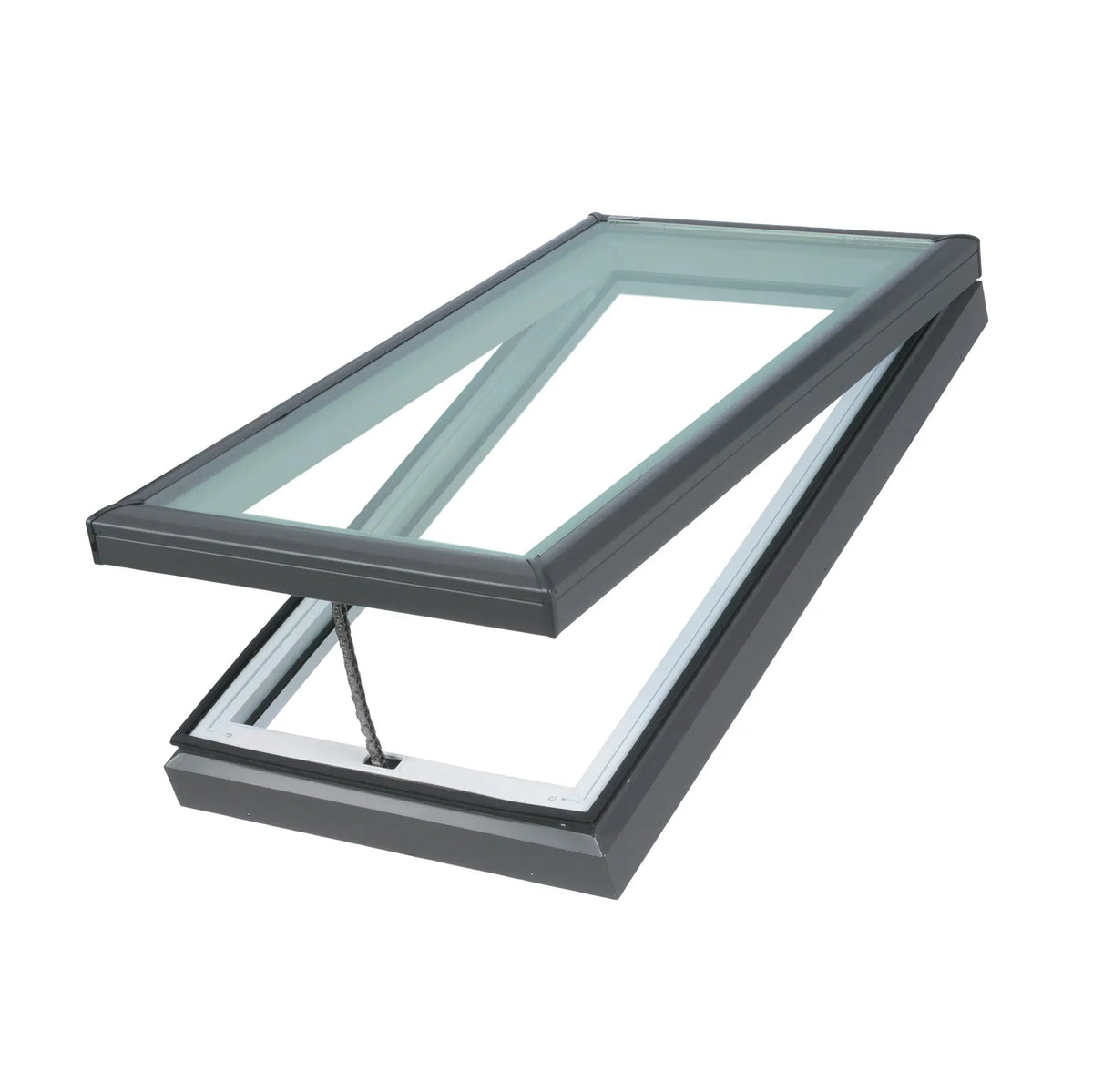

Add daylight and controllable ventilation to pitched roofs with this 550 x 700mm VELUX VS manual skylight.
This opening skylight combines a white-painted pine frame, grey aluminium capping, removable insect screen and laminated high-performance double glazing.
Key features
- 550 x 700mm overall frame size
- 407 x 519mm internal glass size
- 0.21m2 daylight area
- 0.31m2 ventilation area
- Suitable for roof pitches from 15 to 90 degrees
- Operating hook and removable insect screen included
- Compatible flashing and manual controls sold separately
Common uses
- Adding natural light and fresh air to pitched-roof spaces
- Tiled and low-profile metal roofs with matching EDW flashing
- Slate and shingle roofs with matching EDL flashing
Warranty
VELUX skylights are supplied with a 10-year warranty, subject to VELUX warranty terms and conditions.
Item Code
VS C01 2004AD
